775VM800
FAQ
Question ( Q&A-44):I use 775VM800/P4VM800/K7S41GX/K7S41 motherboards. Do these models support 1440x900 resolution? (7/21/2006) Answer:If your board is 775VM800, please update BIOS to P1.50 or later version.
http://www.asrock.com/mb/download.asp?Model=775VM800
If your board is P4VM800, please update BIOS to P1.60 or later version.
http://www.asrock.com/mb/download.asp?Model=P4VM800
If your board is K7S41GX, Please update BIOS to P2.50 or later and VGA driver to 3.73 or later version.
http://www.asrock.com/mb/download.asp?Model=K7S41GX&s=462
If your board is K7S41, Please update BIOS to P2.30 or later and VGA driver to 3.73 or later version.
http://www.asrock.com/mb/download.asp?Model=K7S41&s=462
VGA Driver for K7S41 / K7S41GX: http://www.sis.com/download/agreement.php?id=155931
Question ( Q&A-34):My motherboard is P4VM800/ 775VM800/ P4V88+/ 775V88+/ P4Dual-880Pro/ 775Dual-880Pro/ K8Upgrade-VM800. I used it with SATA hard drive with RAID condition under Windows XP. If I log on with a limited user account, the system will show an error (see below picture), what should I do?  (8/24/2005) Answer:Please refer to our download site to download the latest VIA RAID driver. This new released driver can solve this problem.
P4VM800: http://www.asrock.com/support/download.asp?Model=P4VM800
775VM800: http://www.asrock.com/support/download.asp?Model=775VM800
P4V88+: http://www.asrock.com/support/download.asp?Model=P4V88%2b
775V88+: http://www.asrock.com/support/download.asp?Model=775V88%2b
P4Dual-880Pro: http://www.asrock.com/support/download.asp?Model=P4Dual-880Pro
775Dual-880Pro: http://www.asrock.com/support/download.asp?Model=775Dual-880Pro
K8Upgrade-VM800: http://www.asrock.com/support/download.asp?Model=K8Upgrade-VM800
Question ( Q&A-33):I would like to install Red Hat Linux 9.0 on my VIA 8237/8237R based motherboards. But after I finished the installation of Red Hat Linux 9.0, it hung with kernel panic during boot-up. The error message is shown as below:  How do I fix this problem? (7/15/2005) Answer:Please add VIA vmlinuz-2.4.20-8-IDE patch to Linux kernel by following steps. First, copy the patched kernel (vmlinuz-2.4.20-8-ide) into floppy disk. Then, select one of the cases applies to your situation below. (a)Clean install the Red Hat Linux 9.0. Before exiting the installation of Red Hat Linux 9.0, press ++ to enter console mode. Then skip the case (b) to proceed.
(b)Use the kernel in existing Red Hat Linux 9.0 system.

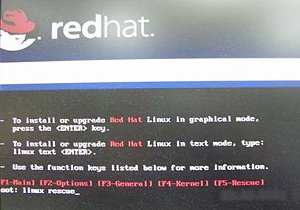

Make sure the first boot device is CD_ROM in your system BIOS, then put the installation CD 1 into CD-ROM. When booting the installation CD, type the following command when the "boot:" message appears on the screen.
linux rescue /* press enter */

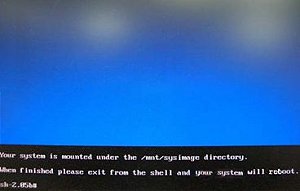

Then follow the instructions, and select the partition that the existing Red Hat Linux 9.0 is located in the "system to rescue" window. Then it will enter the console mode after a while.
Console mode:

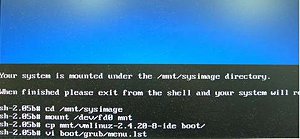

After entering the console mode, run the following commands.
# cd /mnt/sysimage /* press enter */
# mount /dev/fdo mnt /* after type this command, insert the floppy and press "enter" */
# cp mnt/vmlinuz-2.4.20-8-ide boot/ /* reading the floppy for a while */
# vi boot/grub/menu.lst /* press enter and it will enter /mnt/sysimage/boot/grub/menu.lst file */

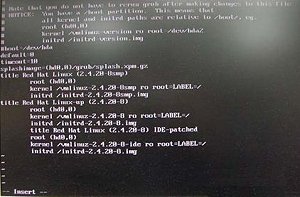

Under /mnt/sysimage/boot/grub/menu.lst file press "A" to enter insert mode.

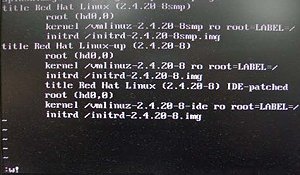

Add the following lines into /mnt/sysimage/boot/grub/menu.lst file.
title Red Hat Linux (2.4.20-8) IDE-patched /* press enter */
root (hd0,0) /* press enter */
kernel /vmlinuz-2.4.20-8-ide ro root=LABEL=/ /* press enter */
initrd /initrd-2.4.20-8.img /* press Esc to leave insert mode */
Press Esc to leave insert mode and type the command below.
:w! /* press enter to save file */

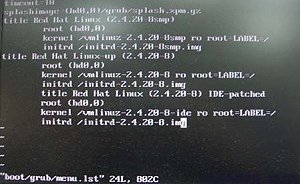

It will appear the message "boot/grub/menu.lst" 24L, 802C
Then, reboot system and enter the "Red Hat Linux (2.4.20-8) IDE-patched" kernel. The problem would not happen again.
Please see General FAQ, HDD FAQ, Audio FAQ, VGA FAQ for reference.
|
